Westone Thunder active guitars - first version
See here for connection details to the pots and switches

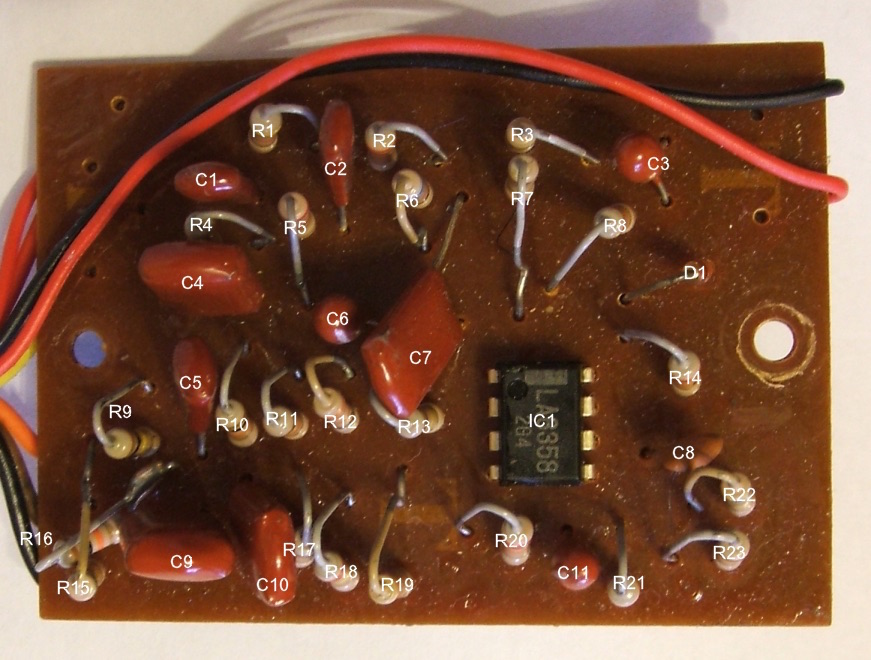

Component overlay
Parts list
Resistors - all 0.25W 10% tolerance R1 47K yellow violet orange R2 22k red red orange R3 1k brown black red R4 2M2 red red green R5 2k2 red red red r6 68k R7 100k brown black yellow R8 22k red red orange R9 100k brown black yellow R10 10k brown black orange R11 10k brown black orange R12 33k orange orange orange R13 100k brown black yellow R14 22k red red orange R15 560k green blue yellow R16 not on board 10k brown black orange R17 100k brown black yellow R18 220k red red yellow R19 33k orange orange orange R20 22k red red orange R21 22k red red orange R22 560k green blue yellow R23 100k brown black yellow capacitors C1 4n7 mylar C2 4n7 mylar C3 4u7 35v tant C4 47n mylar C5 6n8 mylar C6 4u7 35v tant C7 22n mylar C8 220p ceramic C9 47n mylar C10 33n mylar C11 4u7 35v tant semiconductors IC1 - LA6358 (Obsolete - use LM358) D1 - small signal diode, probably 1N4148 PARTS MOUNTED ON 4PDT SWITCH - (See link above) C1 22n mylar R1 1M

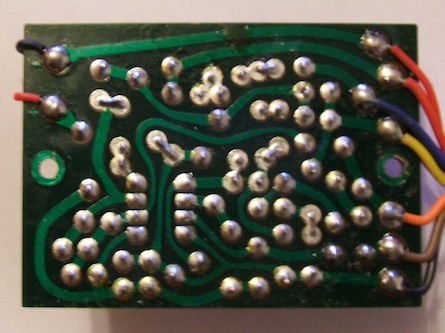

PCB bottom

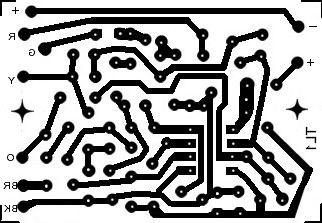

PCB foil pattern - mirrored, see misc
